Pick and Carry Crane
Pick and Carry Crane Safe Load Indicator – Because their operations are more sophisticated, the new generation and Hydra series are more prone to mishaps. They move with the load, convey it out with several hooks of varying capacities, and have an articulation function. All of this frequently leads to a high risk of mishap owing to quick stability loss and crane toppling.
CTS has extensive knowledge and experience in providing solutions to its clients. We have a field expert team that is continually developing to make crane operations safer and more productive. One of the primary reasons that all major OEMs want to engage with us is that we offer value to their operations.

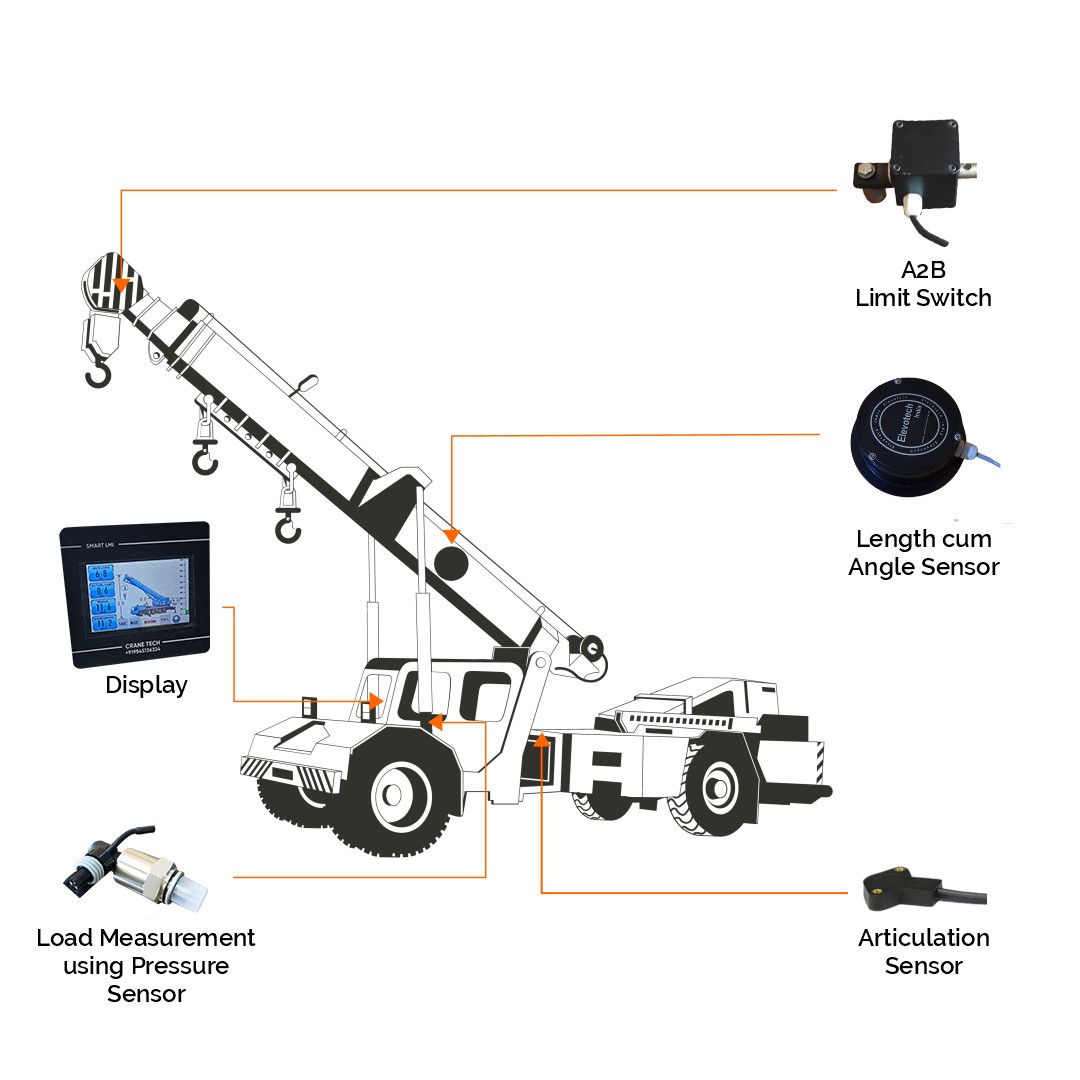

CTS created a system specifically for pick and carry cranes. To determine the lifted load, the system measures the pressure in the luff cylinder. This method assists in calculating the load on all crane hooks, whether fixed or movable. One significant advantage of the system is that no dead weight is required for system calibration. The system automatically calibrates itself.

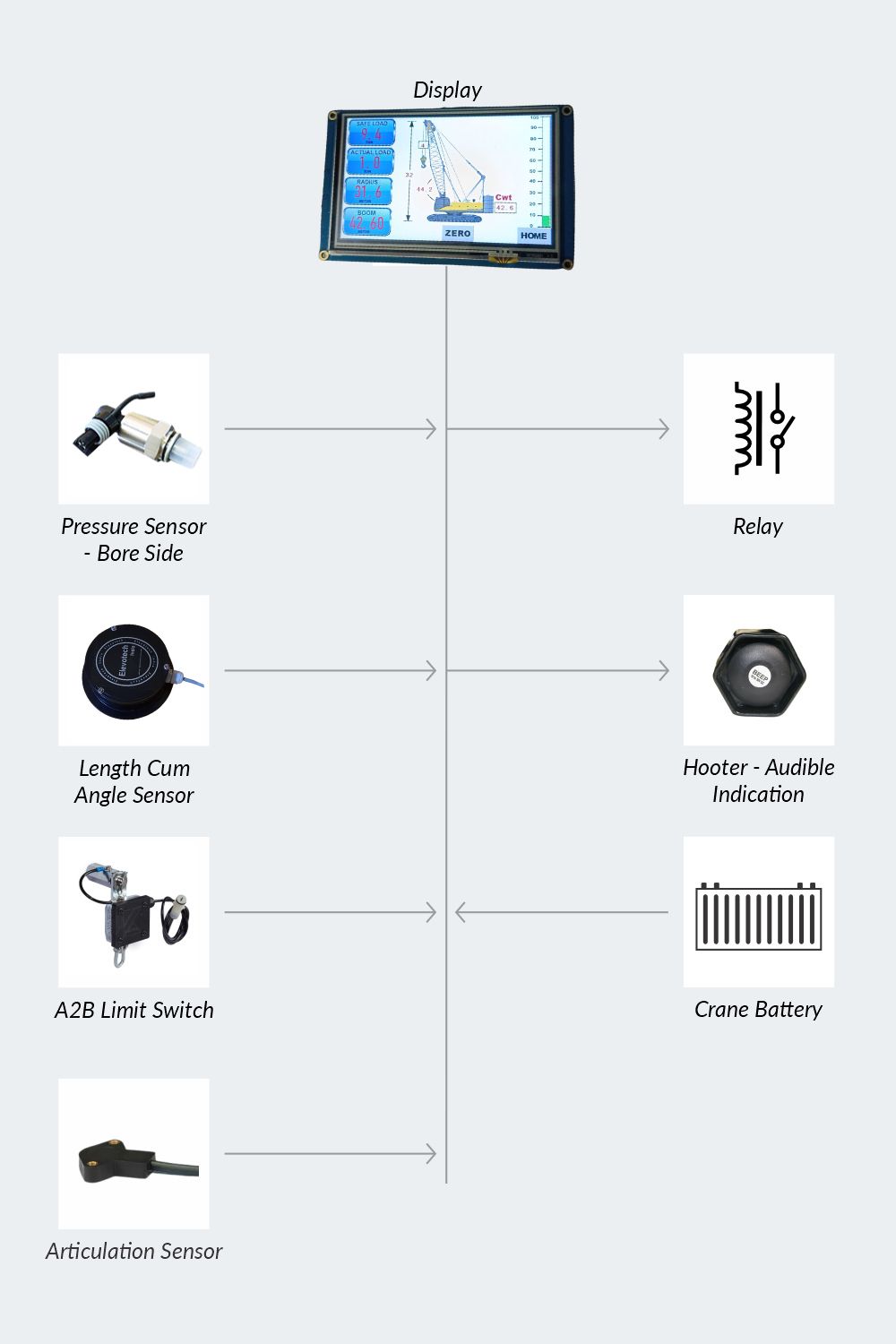

Specifications- Pick and Carry Crane LMI Solution
Pressure sensor measures the luff pressure in lift cylinder. The lifted load is calculated based on the pressure output. This method helps to measure the load lifted by all hooks- fixed or moving.
No welding of load sensor on the crane boom. The three pulley load sensor – dynamometer is an outdated technology that causes damage to the wire rope due to abrasion with the pulley and also it disturbs the winding of the wire rope on the hoist drum.
Auto calibration, the system doesn’t require any weights at the site for calibration. Saves headache and cost involved in arranging the weights at the site.
Sunlight readable backlit LCD display, UV stabilized with antiglare coating
Clear & easy to understand audio & visual annunciation for exceptional conditions
Simple, easy to do wiring using waterproof connectors
Output available to drive a hydraulic dump valve for implementing motion cut-off function, protecting the crane from an accident.
Robust-built, sealed components designed to operate in rough & rugged conditions. Water ingress protection on all outdoor components.
Easy to use, operator-friendly & trouble-free operation.
Operates on 10v to 30v battery supply
Serial port output to integrate telematics device to transmit lift data to the cloud.
